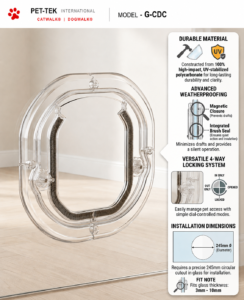

G-CDC – Catwalk® Glass-Fitting Cat Door
Standard
The original Catwalk cat door for glass: a round 245 mm cut-out, a 9 mm frame each side, and a 165 × 180 mm opening for cats up to about 7 kg. For single glazing and sliders 3–10 mm — the one that has been going into New Zealand windows since 1999.
Colour Clear G-CDC
Retail checkout opens soon · glaziers, installers and retailers: trade pricing via the trade button.
Often bought with this door
Specifications
G-CDC- Fit

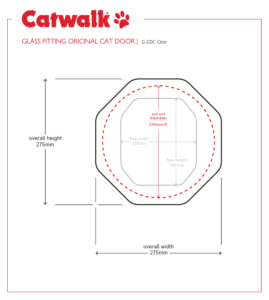

- Glass cut-out
- 245 mm round
- Frame projection, inside
- 9 mm
- Frame projection, outside
- 9 mm
- Size
- Usable opening W × H
- 165 × 180 mm
- Flap panel W × H
- 165 × 193 mm
- Overall frame W × H
- 275 × 275 mm
- Build
- Flap
- UV-stabilised polycarbonate
- Closure
- Magnetic, brush seal
- Locking
- 4-way dial open · in · out · locked
- Barcode GTIN-13
- 9421006250014

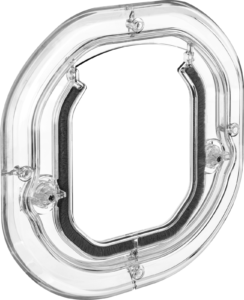

The round cat door for glass
A glass cat door should disappear into the pane, and a round one does that best: one 245 mm hole, no corners to crack from, and a frame only 9 mm deep on each face. The Standard fits single glazing and sliding doors from 3 to 10 mm, which is most older aluminium joinery and almost every window.
Sized for ordinary cats
The opening is 165 mm wide by 180 mm high — right for cats up to about 7 kg. A very large cat, or a small dog, should have the Maxi instead.
Quiet, sealed, lockable
The polycarbonate flap closes on a magnetic catch against a full brush seal, so it does not bang in the wind or let the draught through. The 4-way dial gives in-only, out-only, both, or locked.
Download the installation guide (PDF) — the sheet your glazier will want to see.
Double glazing or a big cat? Choose the Maxi
The Maxi Dual Glaze takes glass to 28 mm and has a larger 187 × 190 mm opening; the Maxi Slim Line does the same for sliders.
What arrives
- Catwalk Standard glass door — inner and outer frame
- Polycarbonate flap with magnetic catch, fitted
- 4-way locking dial, factory fitted
- Fixing screws
- Installation guide
To be installed by a professional glazier.
Care
Wipe the flap and frame with a damp cloth and mild detergent. No solvents, no abrasive pads — they haze polycarbonate. The brush seal can be replaced if it wears; ask us for the part.
Warranty

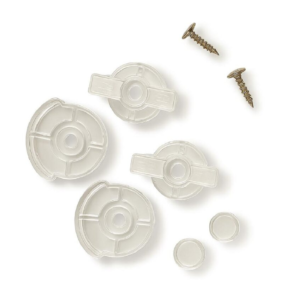

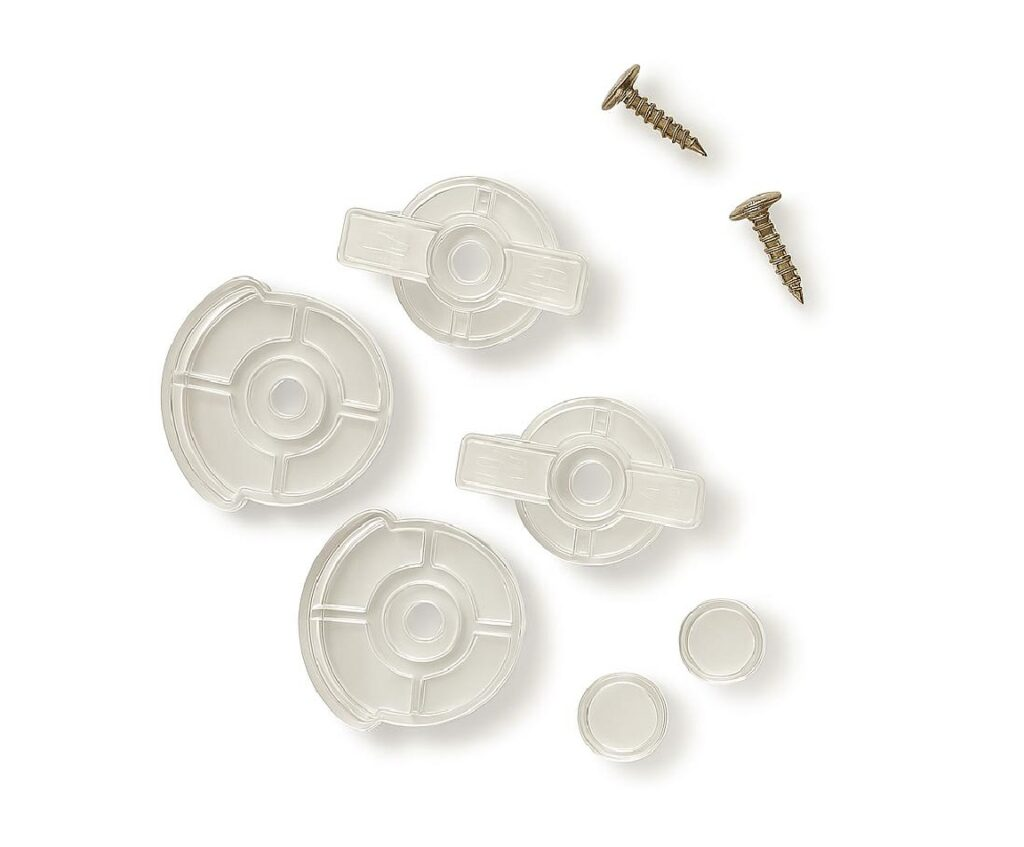

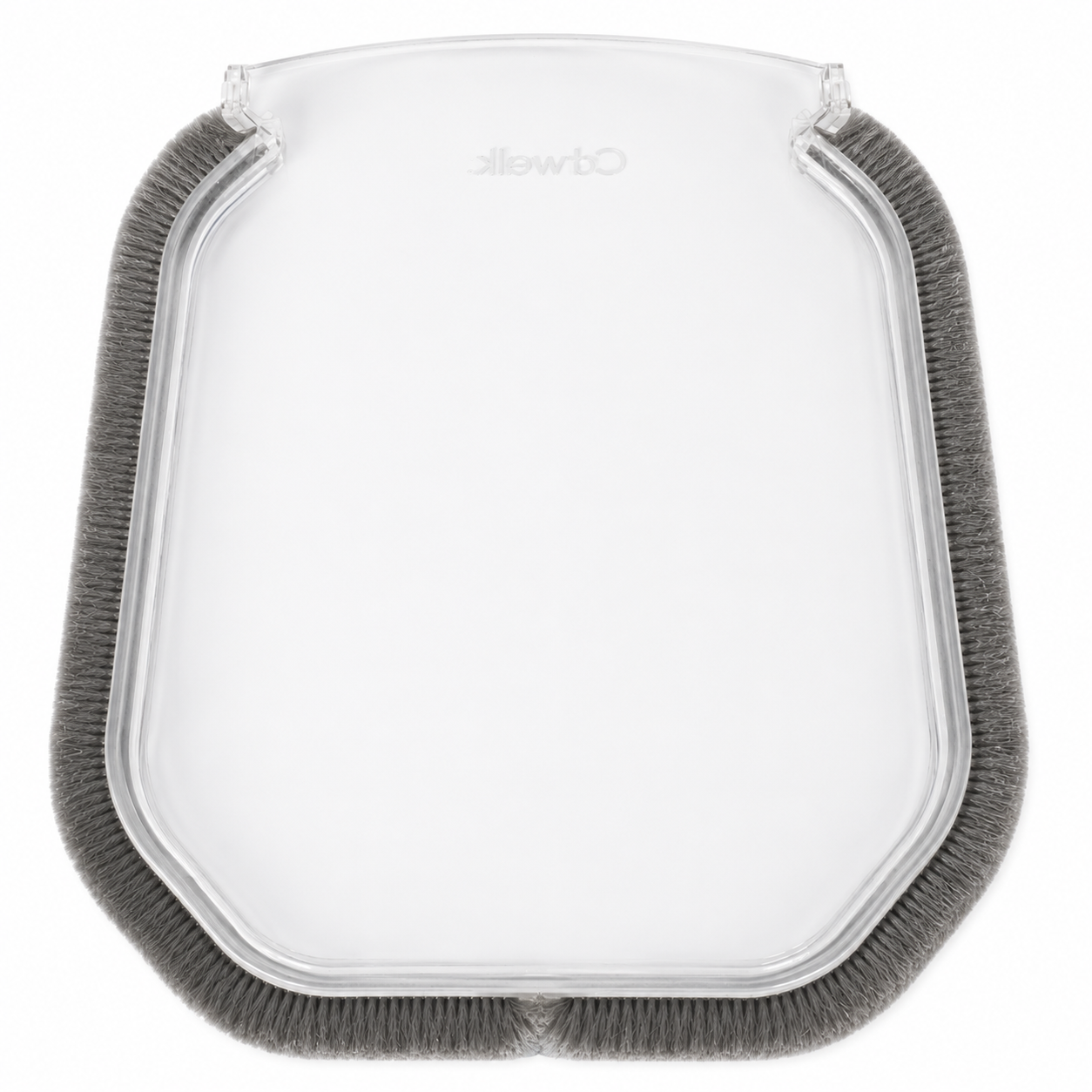

3 years on the door against manufacturing and parts defects; 1 year on movable parts — the replacement flap (G-CDRF, $24) and the 4-way locking dial (G-LDCDC, $13). Excludes accidental damage, misuse and normal wear. Keep your proof of purchase. This sits alongside, and does not limit, your rights under the Consumer Guarantees Act 1993.
What your glazier will do
- 1Measure belly height. Floor to your cat’s stomach while standing — that is where the bottom of the opening goes. Cats: 100–150 mm.
- 2Mark and scribe. Mark that height on the glass from the outside and scribe a 245 mm circle — this is the cut-out.
- 3Cut, or replace. Single glazing: the glazier cuts the hole. Double glazing or toughened: the glazier supplies a new pane with the hole already made.
- 4Fit the two frames. Outer frame in from outside, inner frame over it from inside — a slip joint that closes against the glass.
- 5Screws. Cut the fixing screws to length and tighten firmly. Do not over-tighten.
- 6Test the lock. The dial comes fitted — turn it through all four positions to check.
Four-way locking
Entry only · exit only · both ways · locked.
Watch the installation
Download the printable guide for your glazier.
Two measurements
Measure your cat’s width at the shoulders and the depth from the top of the shoulders to the bottom of the chest; add 25 mm to each and both should fit inside the opening. Fit the door with the bottom of the opening 100–150 mm off the floor.
Multi-pet home? Size for the biggest, fit for the smallest — the bottom of the opening at the smaller animal’s belly height.
Which glass door
| Your cat | Door |
|---|---|
| Cats to about 7 kg | Catwalk Standard — this door |
| Big cats & small dogs, to ~300 mm | Maxi |
| Keep other cats out | Multi-Magnetic |
What owners say
No reviews yet for this door. Reviews here come only from people who bought it on PetNest.
Bought this from PetNest? Use the review link in your order email, or sign in to leave a review.
Before you buy
What glass does the Standard cat door fit?
Single glazing and sliding doors from 3 to 10 mm thick. It is not for double-glazed units — for those, choose the Maxi Dual Glaze.
Can I fit a cat door in a glass door myself?
No — the 245 mm hole has to be cut by a glazier, or a new pane supplied with the hole in it. After that the two frames clamp together with screws in minutes.
What size cat will fit?
Cats up to about 7 kg. The usable opening is 165 mm wide by 180 mm high. For a big cat or a small dog, the Maxi’s 187 × 190 mm opening is the better choice.

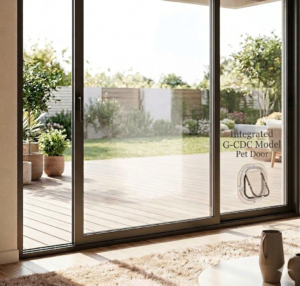

Does it suit a sliding door?

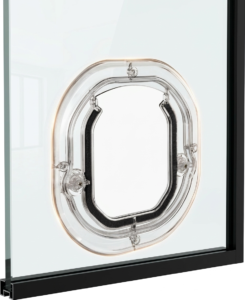

Yes. The frame projects only 9 mm on each side of the glass, so it clears the track and fixed pane on a ranchslider.
Does it lock?
Four ways: entry only, exit only, both directions, or locked. The dial is fitted at the factory — test it once the door is in.
