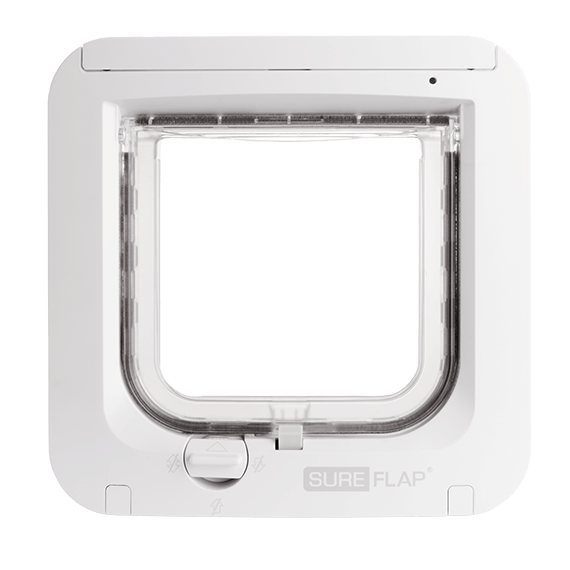

SUR001 – SureFlap Microchip Cat Flap
White · SUR001
The microchip cat door that opens for your cat and nobody else’s. It reads the identification chip your cat already has (or a Sure Petcare RFID collar tag), remembers up to 32 pets and runs for about a year on four AA batteries. Fits doors and walls as supplied; add the mounting adaptor for glass.
Retail checkout opens soon · glaziers, installers and retailers: trade pricing via the trade button.
Often bought with this door
Specifications
SUR001- Fit
- Door or wall cut-out
- 165 × 171 mm
- Glass cut-out
- 212 mm round, with adaptor
- Adaptor covers holes
- 212–260 mm
- Tunnel depth
- 70 mm +50 per extender
- Size

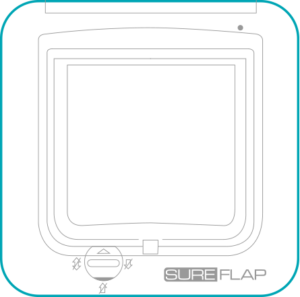

- Outer frame W × H
- 210 × 210 mm
- Frame depth, front
- 42 mm
- Power & memory
- Batteries
- 4 × AA not included
- Battery life
- up to 12 months
- Pets stored
- 32
- Reads
- 9, 10 & 15-digit chips + RFID tag
- Lock
- 4-way manual
- Barcode GTIN-13
- 5060180390006
A cat door that checks who’s coming in

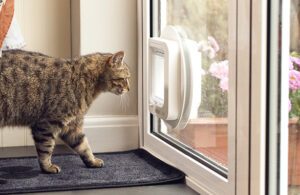

Every cat that pushes on the flap is scanned. The SureFlap reads the microchip under your cat’s skin, checks it against the pets you have registered and releases the latch only for a match. The stray from down the road, the neighbour’s tom, the cat who likes your cat’s biscuits — all stay outside. Your cat wears nothing extra.
Doors, walls and glass

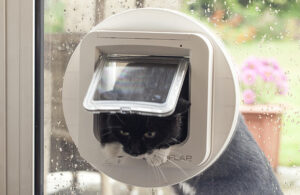

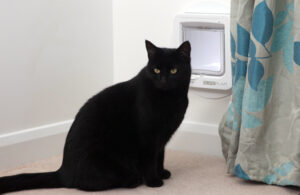

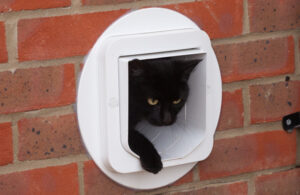

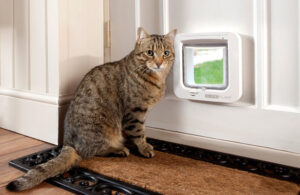

Out of the box the flap fits timber, uPVC and metal doors up to about 70 mm thick; for a wall or a thicker door, clip on tunnel extenders at 50 mm each. For a window, a glass door or a ranch slider, a glazier cuts a 212 mm round hole and the flap mounts through the mounting adaptor, which also covers an older round hole up to 260 mm.
Set-up in a minute
Press the learn button, let your cat put its head through once, and it is registered — up to 32 of them. Four AA batteries run it for up to 12 months and a light tells you when they are low. The manual 4-way lock still works the way you expect: in only, out only, open, or locked.
Microchip or magnet?
If your cat is not chipped and you would rather avoid batteries altogether, the Catwalk® Multi-Magnetic does selective entry with a small collar magnet instead. The SureFlap is the choice when the cat is already chipped, you want nothing on the collar, and you want the option of a collar tag for a visiting cat.
What arrives
- SureFlap Microchip Cat Flap, white — inner and outer frame
- Fixing screws and screw caps
- Instruction booklet
- Batteries not included — 4 × AA
DIY fit in doors and walls. For glass, a glazier cuts the hole; the flap then mounts through the adaptor.
Care
Wipe the flap and frame with a damp cloth and mild detergent; keep the battery compartment dry. No solvents, no abrasive pads. Change the four AA batteries when the low-battery light shows — your registered cats and lock setting are kept.
Warranty
3 years from Sure Petcare against manufacturing defects, from the date of purchase. Excludes batteries, accidental damage, misuse and normal wear. Keep your PetNest order email as proof of purchase. For a warranty claim, contact Sure Petcare customer care using the form at surepetcare.com/en-nz/contact (have the serial number and your cat’s microchip number ready), or write to Sure Petcare, C/- MSD Animal Health, Private Bag 908, Upper Hut 5140. Their warranty terms: surepetcare.com/en-nz/warranty. This sits alongside, and does not limit, your rights under the Consumer Guarantees Act 1993.
How to fit it
- 1Check the fit. Print the size tester at 100% and see your cat through the 142 × 120 mm opening.

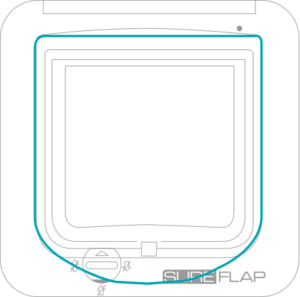

- 2Mark the cut-out. Floor to your cat’s stomach is where the bottom of the opening goes — 100–150 mm for most cats. Draw the 165 × 171 mm rectangle at that height.
- 3Cut the hole. Drill a start hole in each corner and cut along the line with a jigsaw.
- 4Fit the two frames. Outer frame from outside, inner frame from inside, screwed together through the door. Thick door or wall: clip tunnel extenders onto the outer frame first.
- 5Fit the batteries. Four AA in the compartment on the inside frame. The light blinks to say it is ready.
- 6Register your cat. Hold the learn button, let your cat through once — done. Repeat for each cat, up to 32.
Watch: set-up and installation
Setting up the Microchip Cat Flap
Fitting it in a door
Fitting it in glass
Will your cat fit?

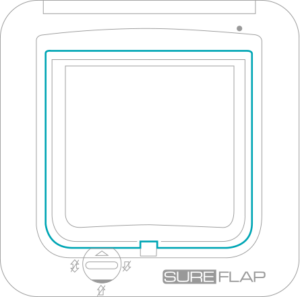

The flap opening is 142 × 120 mm, right for cats up to about 6 kg. Download the print-at-home size tester, cut it out and see your cat go through before you order.
Which door instead
| Your cat | Door |
|---|---|
| Chipped cat, keep strangers out | SureFlap Microchip — this door — this door |
| Big cat or small dog, no selective entry | Catwalk Maxi |
| Selective entry, no batteries | Catwalk Multi-Magnetic (glass) |
| Selective entry in a wooden door | Catwalk Multi-Magnetic (wood) |
What owners say
No reviews yet for this door. Reviews here come only from people who bought it on PetNest.
Bought this from PetNest? Use the review link in your order email, or sign in to leave a review.
Before you buy
Does my cat need a special collar?
No. The flap reads the identification microchip already implanted in your cat. If a cat is not chipped, a Sure Petcare RFID collar tag (sold separately) works the same way.
Which microchips does it read?
All the common identification chips used in New Zealand — 9, 10 and 15-digit formats — plus the Sure Petcare RFID collar tag. If you are unsure what your cat has, your vet can scan it in a few seconds.
Can it go into a glass door or window?
Yes. A glazier cuts a 212 mm round hole in the pane (or supplies a new double-glazed pane with the hole made) and the flap mounts through the GMA001WT2 mounting adaptor. The adaptor also covers an existing round hole up to 260 mm.
How long do the batteries last?
Up to 12 months on four AA batteries. A low-battery light on the inside frame tells you when to change them; the lock settings are kept.
How many cats can it store?
Up to 32. Each cat is registered once with the learn button and the flap remembers it.
What is the difference between this and the Catwalk Multi-Magnetic?
Both let your cat in and keep others out. The SureFlap reads the microchip, needs batteries and costs more; the Multi-Magnetic uses a small collar magnet, has no batteries and costs less. Pick SureFlap if the cat is chipped and you want nothing on the collar.
What is the warranty?
3 years from Sure Petcare, from the date of purchase — keep your PetNest order email as proof. Warranty claims go to Sure Petcare customer care: use the form at surepetcare.com/en-nz/contact and have the serial number and your cat’s microchip number ready. Your Consumer Guarantees Act rights with us are not affected.
